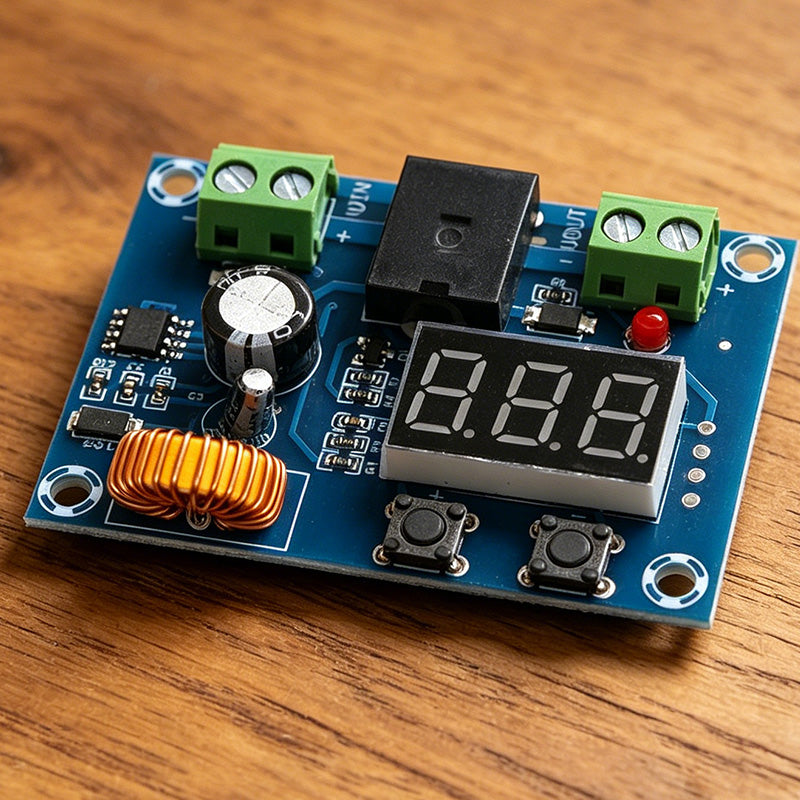

DC 12-36V Battery Voltage Protection Module

FEATURES

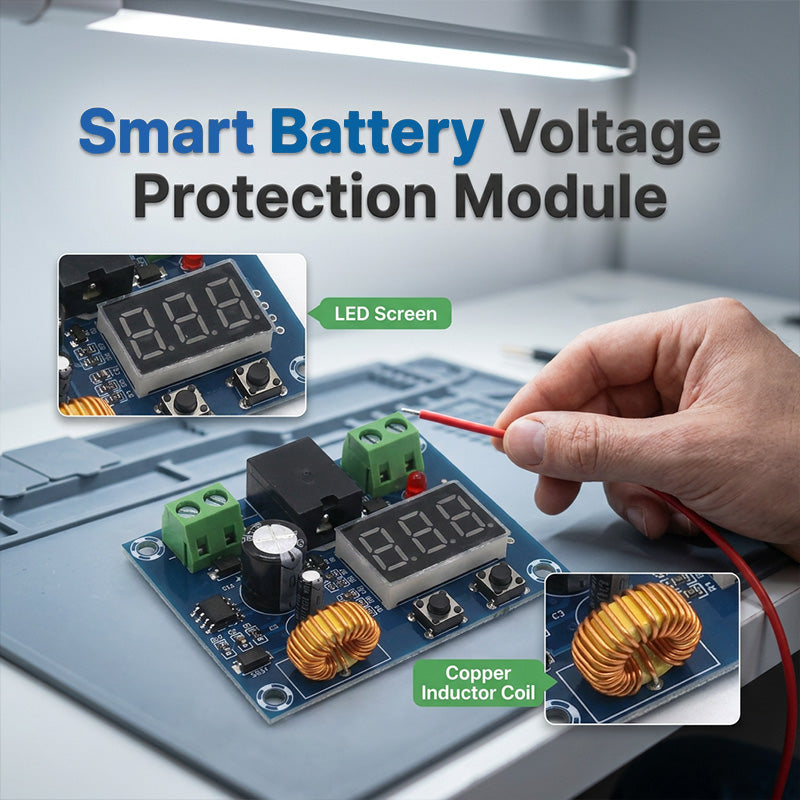

SMART BATTERY VOLTAGE PROTECTION MODULE -Equip your power systems with our high-performance voltage protection module. Engineered to prevent deep discharging, this smart device seamlessly extends your battery lifespan with unparalleled precision and robust industrial reliability.

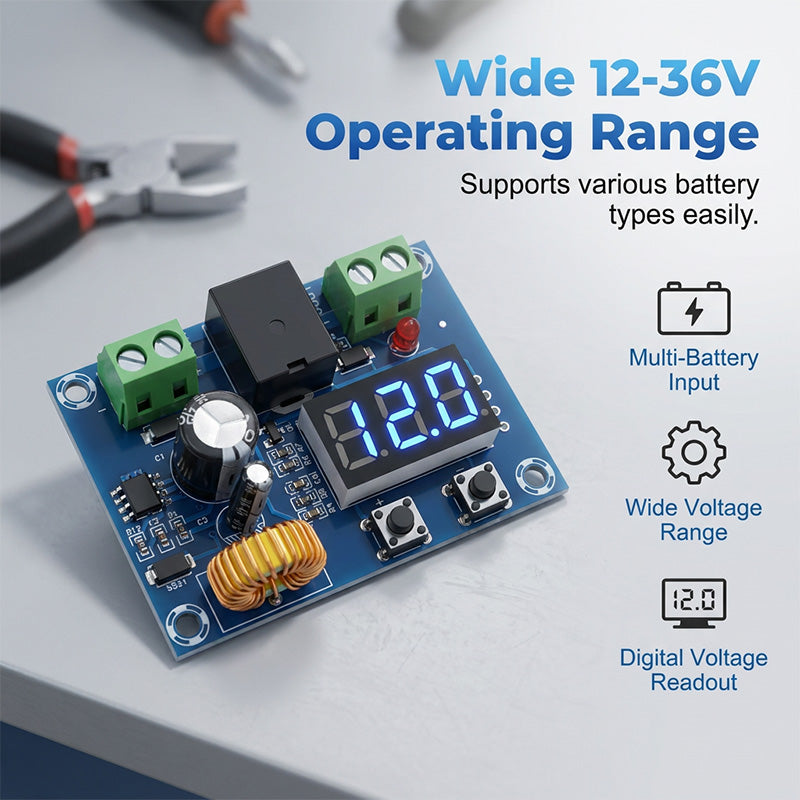

WIDE 12-36V OPERATING RANGE -Designed for ultimate versatility, this module seamlessly operates within a 12V to 36V range. It is perfectly compatible with various setups, including RVs, solar systems, and adjust power banks.

ULTIMATE OVER-DISCHARGE PROTECTION -Protect your investment from irreversible damage. Our module acts as a vigilant guardian, automatically cutting off the power output the moment your battery's voltage drops below your preset safe threshold.

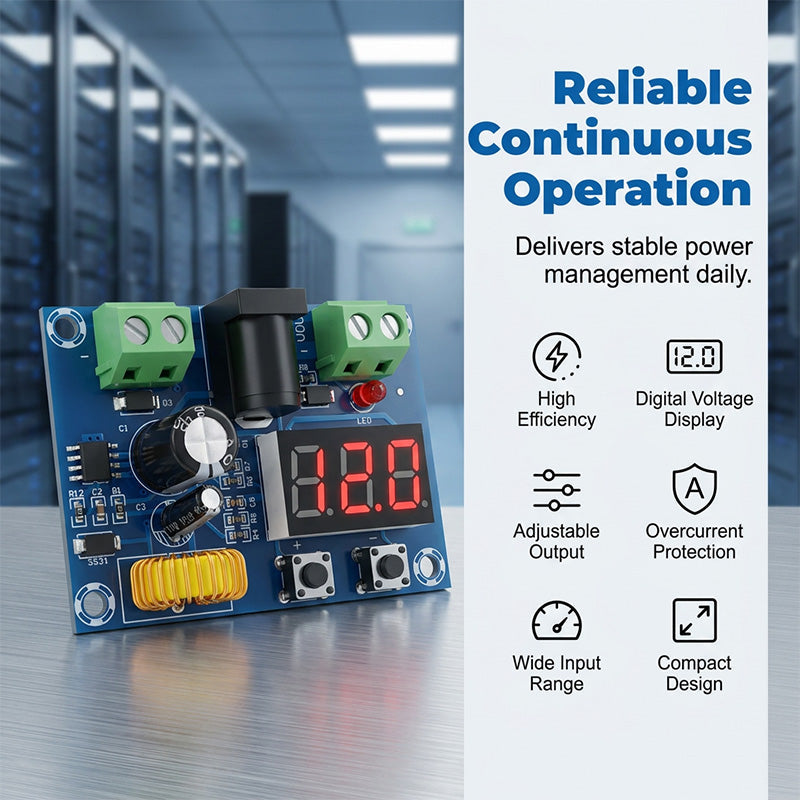

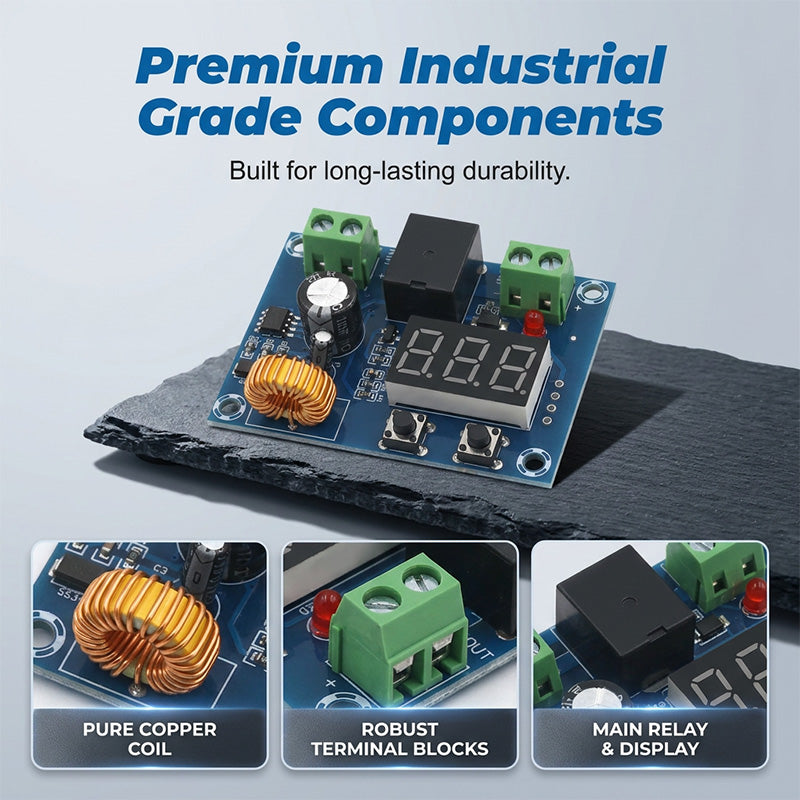

PREMIUM INDUSTRIAL GRADE COMPONENTS -Constructed with a high-performance printed circuit board, robust relay, and pure copper coil, this module ensures stable power transmission and exceptional durability even in demanding continuous-use environments.

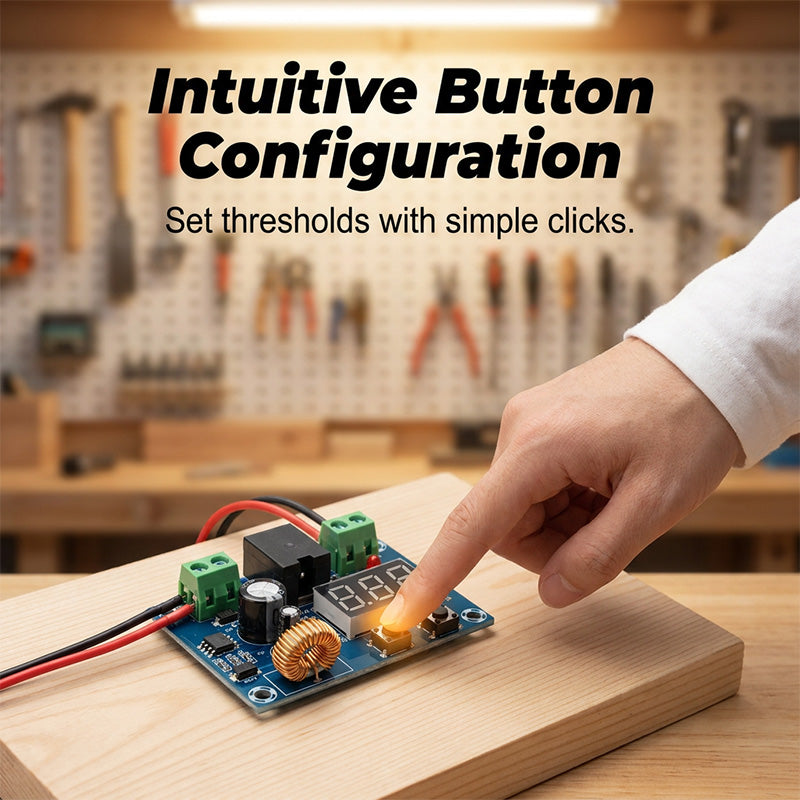

INTUITIVE BUTTON CONFIGURATION -No complex programming required. The user-friendly interface features two tactile buttons, allowing you to quickly and easily set your desired disconnect and reconnect voltage thresholds in seconds.

SPEC

Size: 57mm x 42mm x 16mm (2.24 inches x 1.65 inches x 0.63 inches)

Communication Interface: USB Interface

Power Supply Voltage: 6-60V

Power Supply Current: 10A

Input Voltage: DC 12-36V

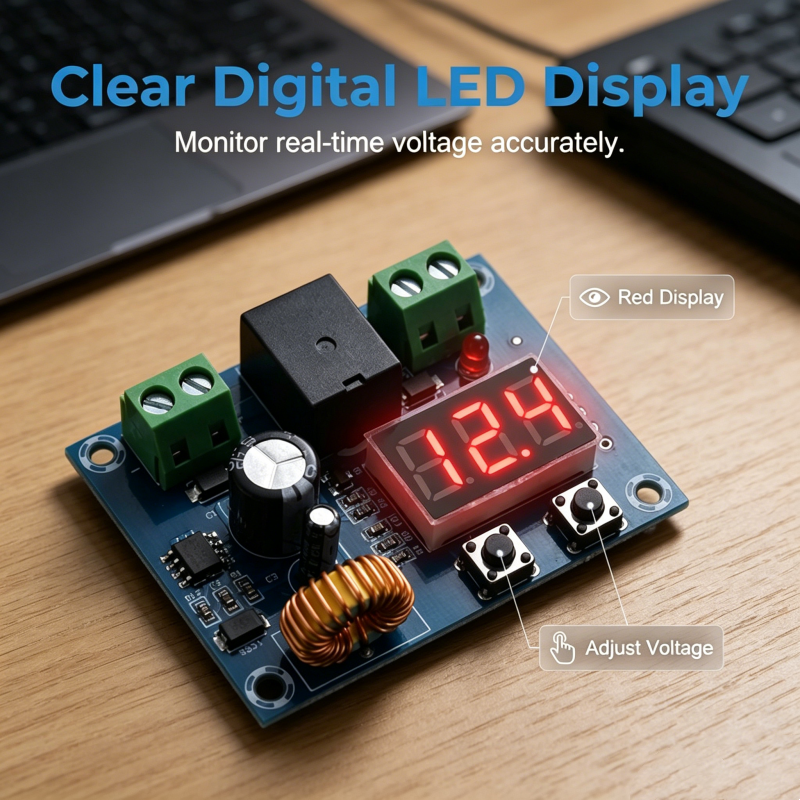

Display Accuracy: 0.1V

Control Accuracy: 0.1V

Voltage Error: +/-0.1V

Adaptable Range: 12-36V Lithium Battery, Storage Battery

Package Includes: 1 * DC 12-36V Battery Voltage Protection Module

NOTES

Please ensure the input voltage does not exceed the rated range to prevent circuit damage.

Connect the positive and negative terminals correctly to avoid short circuits.

Refer to the provided instruction examples for proper hysteresis and threshold setup.
